What are Injection Quills
An injection quill is a device that is used to introduce chemicals into a pipeline or process vessel. It is typically a small-diameter tube that is inserted into the pipeline or process vessel through a fitting or an opening in the wall. The chemical is then pumped or flowed through the quill and into the pipeline or process vessel.
Injection Quills Projects
Client projects made from Injection Quills manufactured in India

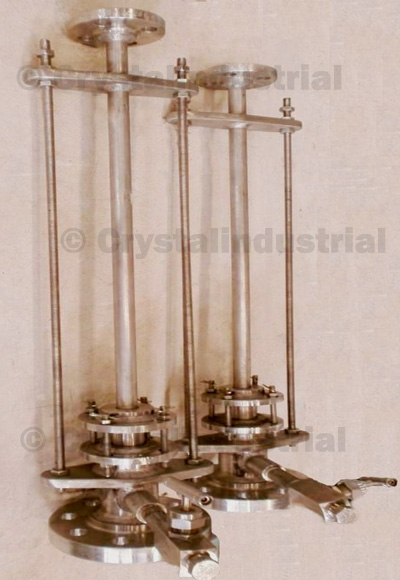

Retractable Injection Quill
Access Fittings

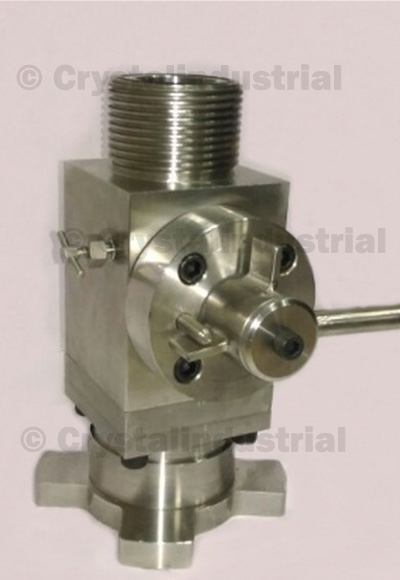

Service Valve
What is a chemical injection quill?
A chemical injection quill is a device used to introduce chemicals into pipelines or process systems in chemical feed systems. It is typically made up of a tube with a point or needle at one end that is inserted into a pipeline or vessel and allows chemical solution to be dispensed into the fluid flow. The use of a chemical injection quill aids in the delivery of the chemical into the system in a controlled, safe, and accurate manner.
What is the purpose of an injection quill?
The purpose of an injection quill is to precisely and accurately introduce chemicals into the pipeline or process vessel. This can be used for a variety of industrial applications such as water treatment, pharmaceutical manufacturing, oil and gas, mining, and many others. It allows for the specific application of chemicals to be precisely controlled, so that the chemical can be introduced at the right time, in the right amount, and at the right location in the pipeline or process vessel. This can help to improve the efficiency and effectiveness of the chemical application process, and can help to reduce chemical waste.
Injection quills are typically made of materials that are resistant to corrosion and can withstand the harsh conditions of the pipeline or process vessel. They can be made from materials such as stainless steel, plastic, and other high-performance polymers. Some injection quills are even designed to be disposable, reducing maintenance and downtime.
In summary, the injection quills are devices that introduce chemicals into a pipeline or process vessel in a controlled and precise manner. They are used to improve the efficiency, effectiveness and accuracy of the chemical application process and reduce chemical waste.
Importance of proper design and installation of an injection quill
Injection quills are an essential component of many industrial processes, from water treatment to chemical manufacturing. They are used to introduce chemicals into pipelines and tanks, and are designed to provide precise dosing and flow control. However, in order for injection quills to function properly, they must be designed and installed correctly.
Proper design of injection quills takes into account factors such as the flow rate, viscosity, and chemical properties of the substances being injected. The size and shape of the quill, as well as the materials used to construct it, must be carefully chosen to ensure that it can withstand the conditions of the process and provide accurate dosing.
Proper installation of injection quills is also critical. The quills must be anchored and supported in a way that prevents them from moving or vibrating, which can cause damage and inaccuracies in chemical dosing. The quills must also be connected to the process piping in a way that maintains system integrity and prevents leaks.
Proper design and installation of injection quills is crucial for safety as well. If quills are not properly designed or installed, they can become a hazard, leaking chemicals or even breaking off and causing injury.
In addition to safety and performance, proper design and installation of injection quills can also provide significant cost savings. Accurately dosed chemicals can lead to more efficient use of resources and reduced waste, while a well-designed and installed quill will have a longer lifespan and require less maintenance.
In summary, proper design and installation of injection quills are essential for optimal performance, safety and cost savings in industrial processes. It is important to consider factors such as flow rate, viscosity, chemical properties, materials and anchoring and support during design, and proper connections during installation for maintaining system integrity.
